Cross-Connect

The Challenge

Any data centre needs a cross-connect to ensure high-performance, network reliability, and low-latency. Traffic comes from several endpoints and for secure transfer of traffic it is a requirement to have centralized management.

The Solution From Cubro

The cross-connect is bidirectional; packets received on the first interface are transmitted out the second interface and those received on the second interface are transmitted out the first interface.

The EX20400 is connected over 4 x 100 Gbit to one EX32100 to build a 500 port 10 Gbit cross-connect.

  • THE CONNECTION IS LAYER 2 TRANSPARENT
  • TO ENSURE FULL CONTROL AND SECURE TRANSFER ALL TRAFFIC IS TRANSPORTED VIA VXLAN TUNNELS ACROSS THE SYSTEM
  • AT THE OUTPUT THE VXLAN TUNNEL IS TERMINATED

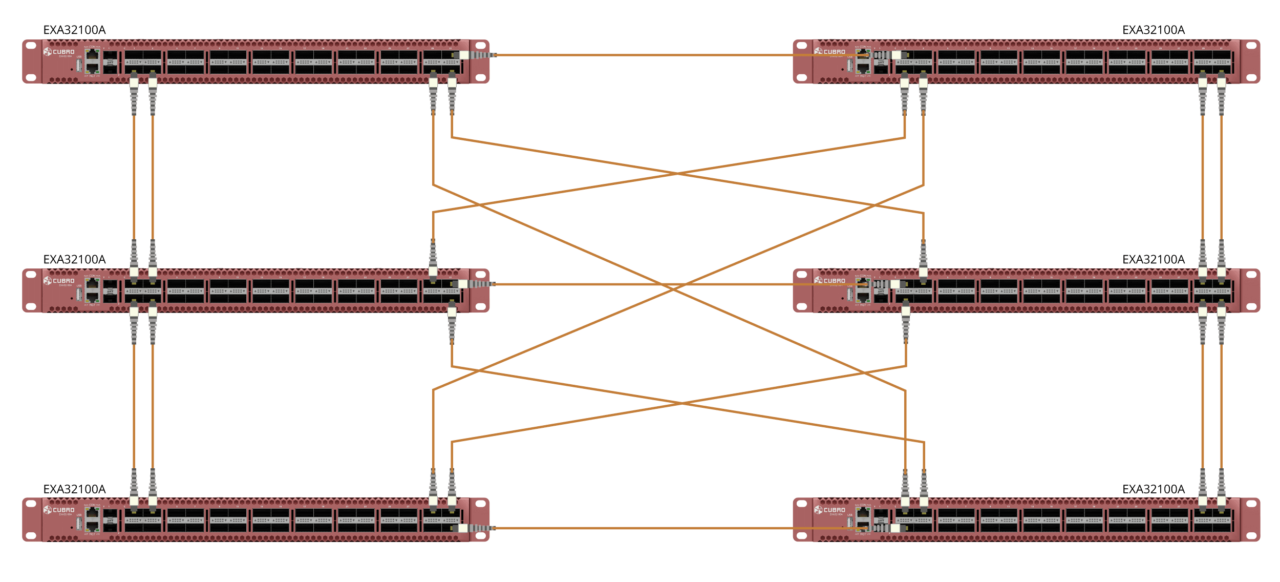

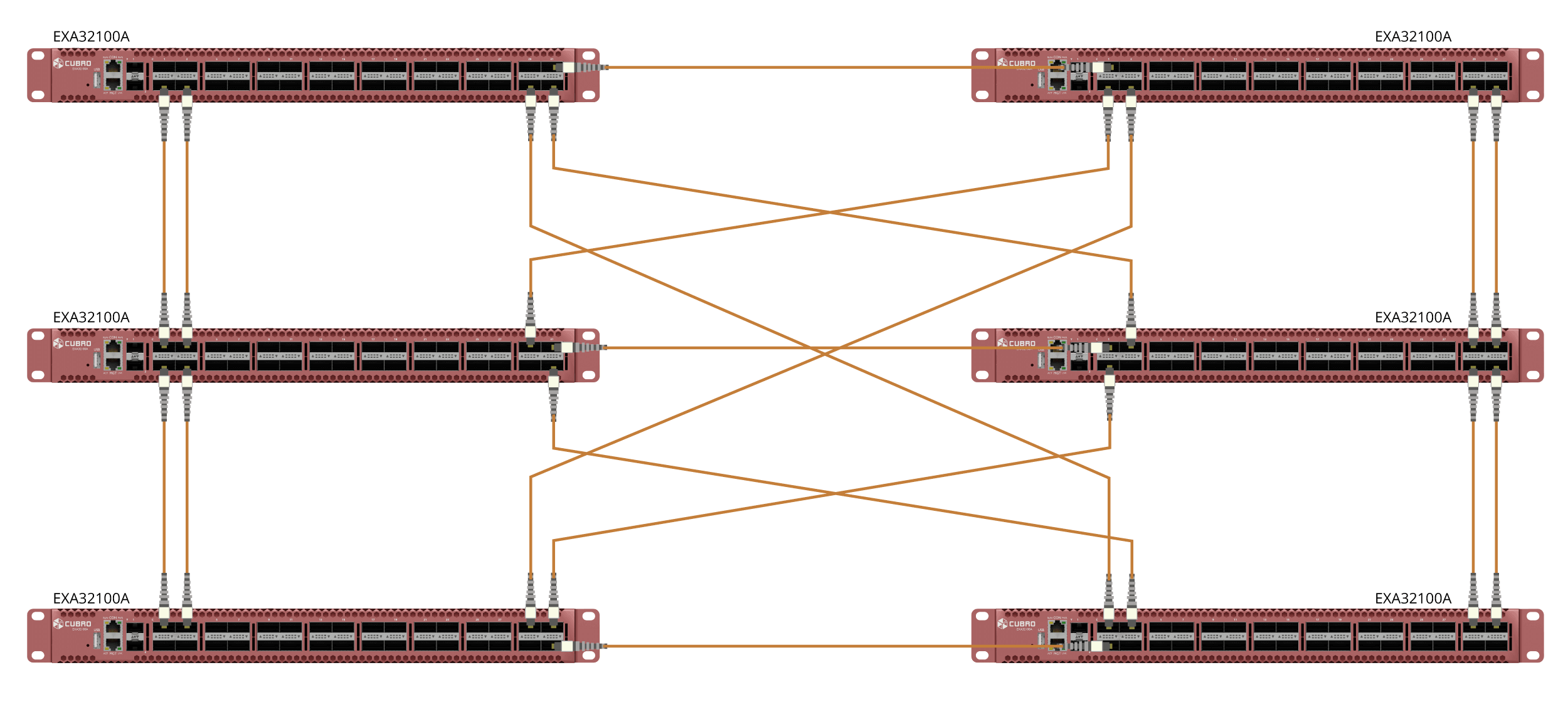

100 Gbit Port Cross-Connect Full Mesh

  • IN THIS APPLICATION 6 EX32100S ARE CONNECTED TO A FULLY MESHED CROSS-CONNECT WITH 162 AVAILABLE 100 GBIT PORTS (27 PER BOX).
  • THE INTERCONNECTION BETWEEN THE DEVICES CAN BE DONE WITH ONE, TWO, OR MORE LINKS DEPENDING ON THE REQUIRED BANDWIDTH.

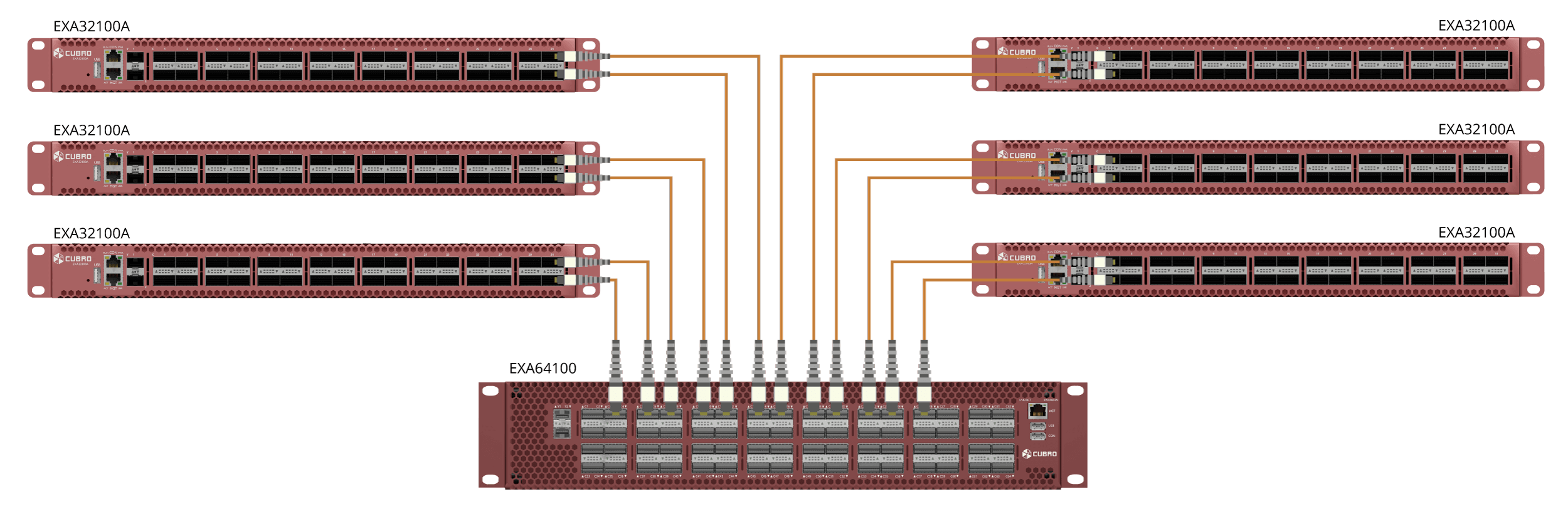

  • IN THIS APPLICATION 6 EX32100S ARE CONNECTED TO A CENTRAL UNIT WITH 186 AVAILABLE 100 GBIT PORTS (31 PER BOX).
  • THE INTERCONNECTION BETWEEN THE BOXES CAN BE COMPLETED WITH ONE, TWO, OR MORE LINKS DEPENDING ON THE REQUIRED BANDWIDTH
